Printing the Nozzle Check Pattern

Print the nozzle check pattern to determine whether the ink ejects properly from the print head nozzle.

Watch the movie

Note

  • If the remaining ink level is low, the nozzle check pattern will not be printed correctly. Replace the ink tank whose ink is low.

You need to prepare: a sheet of A4 or Letter-sized plain paper

  1. Check that printer is turned on.

  2. Load a sheet of A4 or Letter-sized plain paper in the cassette.

  3. Select (Setup) on HOME screen.

    The setup menu screen will appear.

  4. Select Maintenance.

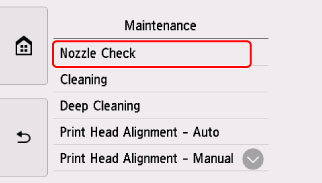

    The Maintenance screen will appear.

  5. Select Nozzle Check.

    The confirmation screen will appear.

  6. Select Yes.

    The operation panel is opened and the paper output tray is pulled out automatically.

    The nozzle check pattern will be printed and two pattern confirmation screens will appear on the touch screen.

  7. Examine the nozzle check pattern.
